Modular Channel MilBerm™

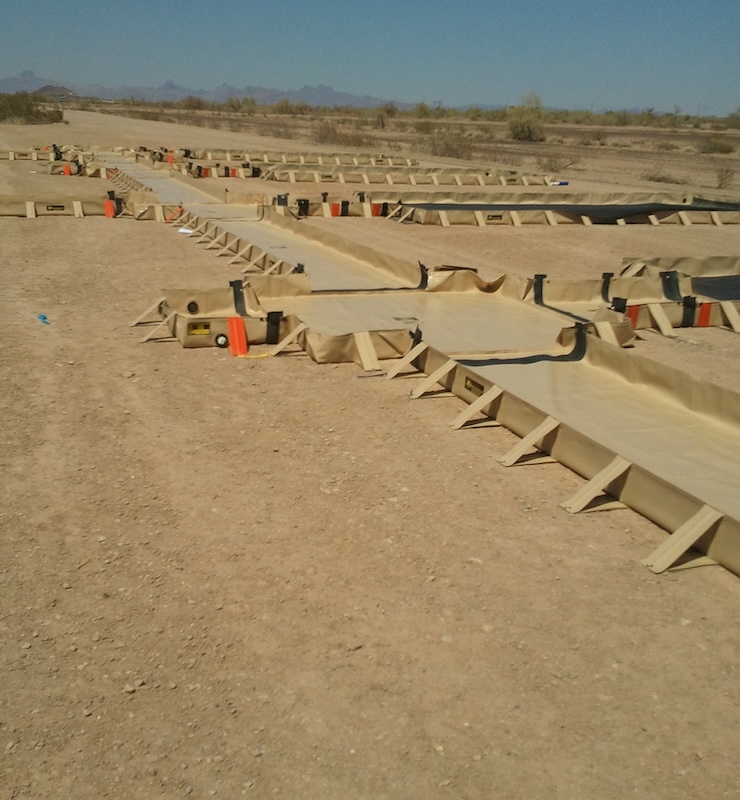

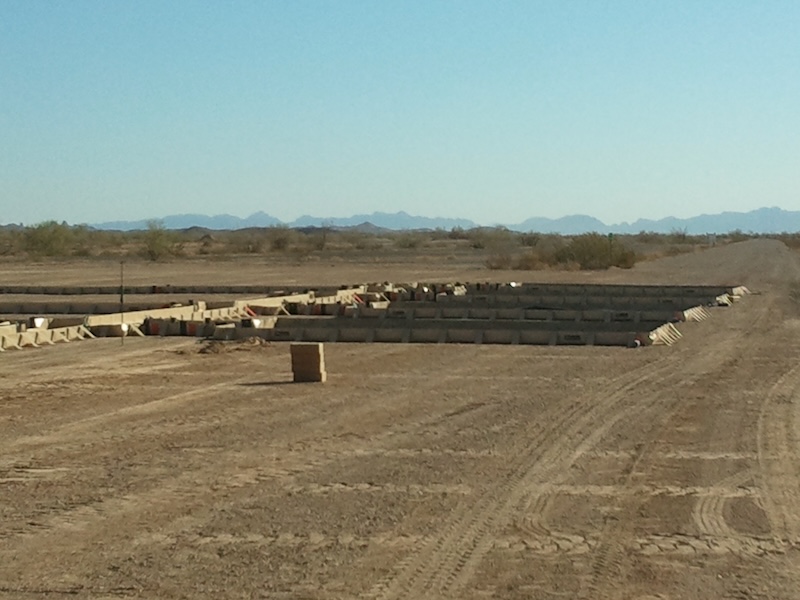

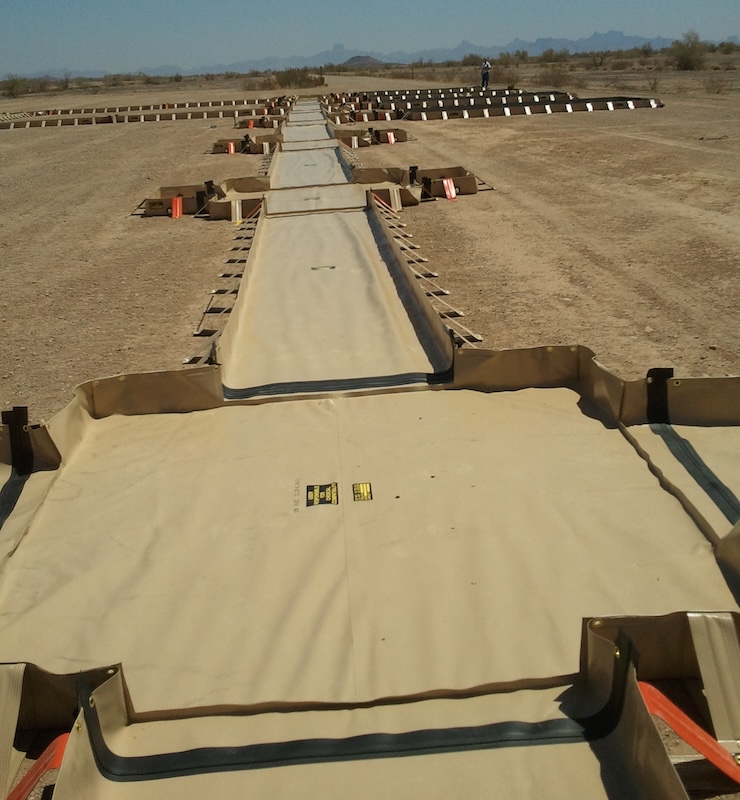

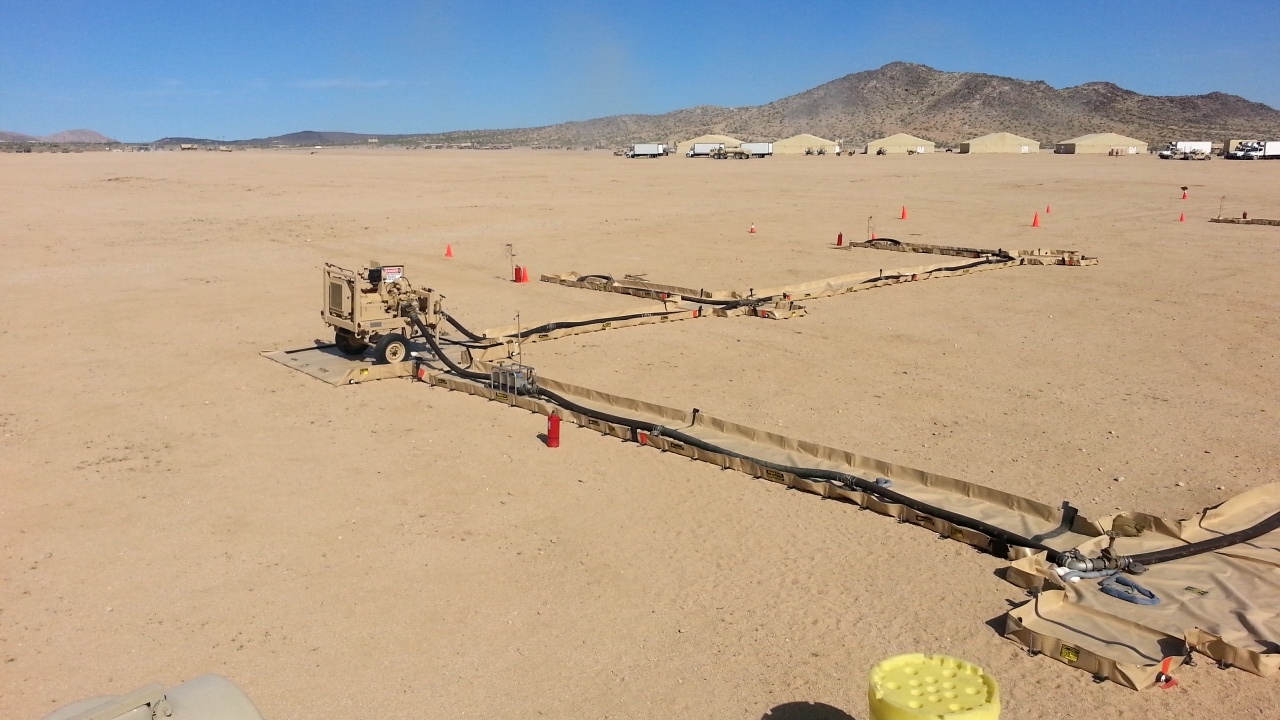

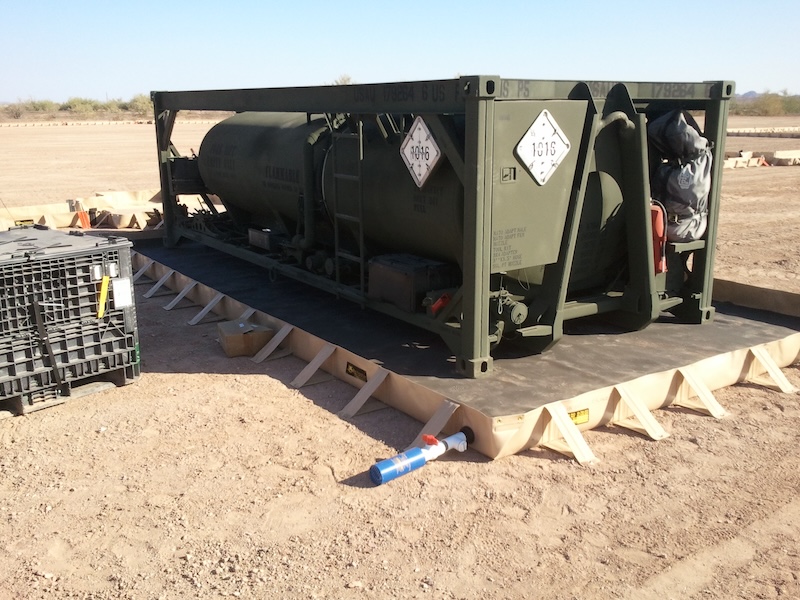

Military Modular Channel MilBerm™ is a configurable secondary containment system for fuel hose systems involved in expeditionary bulk Fuel System Supply Points (FSSP). Features the integral Rigid-Lock support system for easy deployment and fluid-tight tongue and groove connections enabling multidirectional setup configurations. Modular Channel component types include straight runs up to 20 ft, 90° corners, four direction intersections, Tank Rack Module (TRM) containment berms and dispensing point berms.

DES BCI_Modular Channel-MilBerm (bund) Or1

Request National Stock Number

Overview

Flexible modular design allows you to form any configuration.

Standard 4-foot width – custom sizes available.

No assembly required – sets up easily in the field.

Proprietary design with input from the U.S. military.

Full Description

The military Modular Channel MilBerm's folding brace system features supports that lock the wall in an 8-inch-tall, 90-degrees vertical position when deployed. The inclined leg support is only 1.5-inches from the ground for mobility and ease of use. Simply pull up on the perimeter wall and the unit will lock into a vertical position. To lower the wall, push in on it and the lock will release, allowing the Modular Channel MilBerm to lie flat on the floor.

Each section has open ends and tongue-and-groove closures that form a liquid-tight closure.
